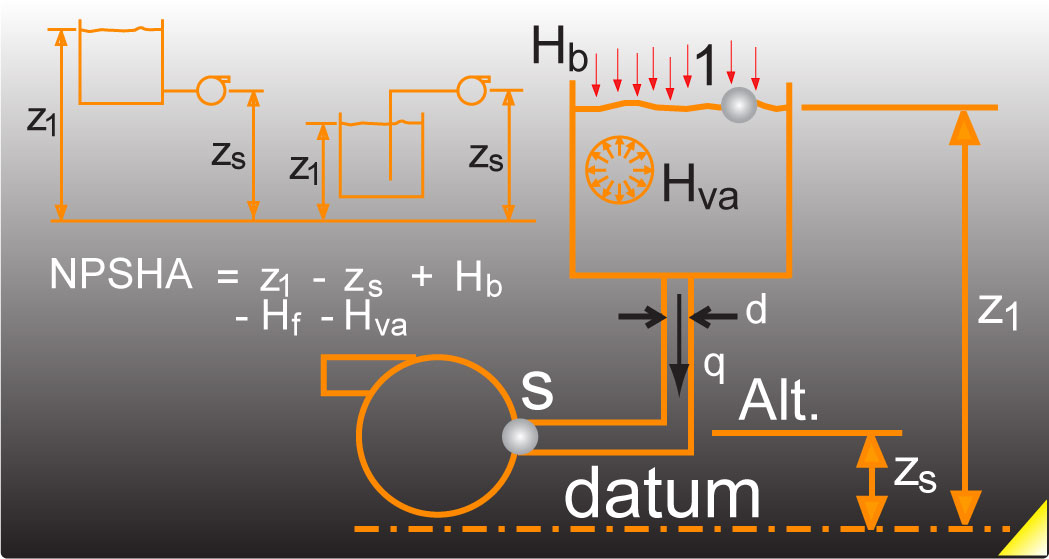

N.P.S.H.A. - Net Positive Suction Head Available calculations

Imperial units Metric units

Flow (gpm):
Diameter (in):     Velocity (ft/s): 4.54
Height z1 (ft):
Height zs (ft):
Altitude (ft):
Specific gravity SG:
Barometric head Hb (ft): 34
Friction head Hf (ft):
Vapor press. head Hva (ft):


N.P.S.H.A. (ft):    37.7

more info
